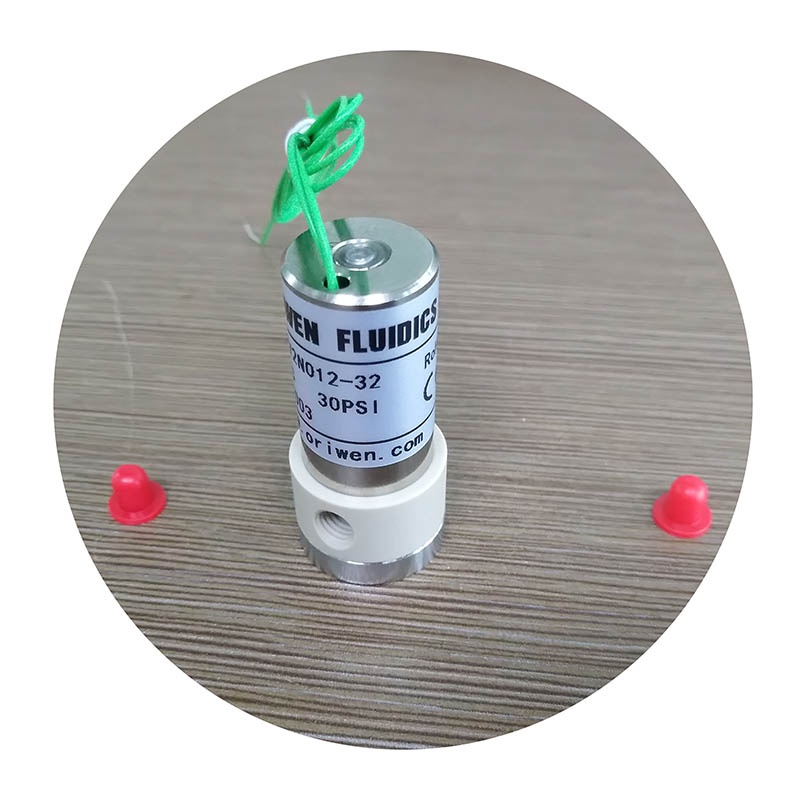

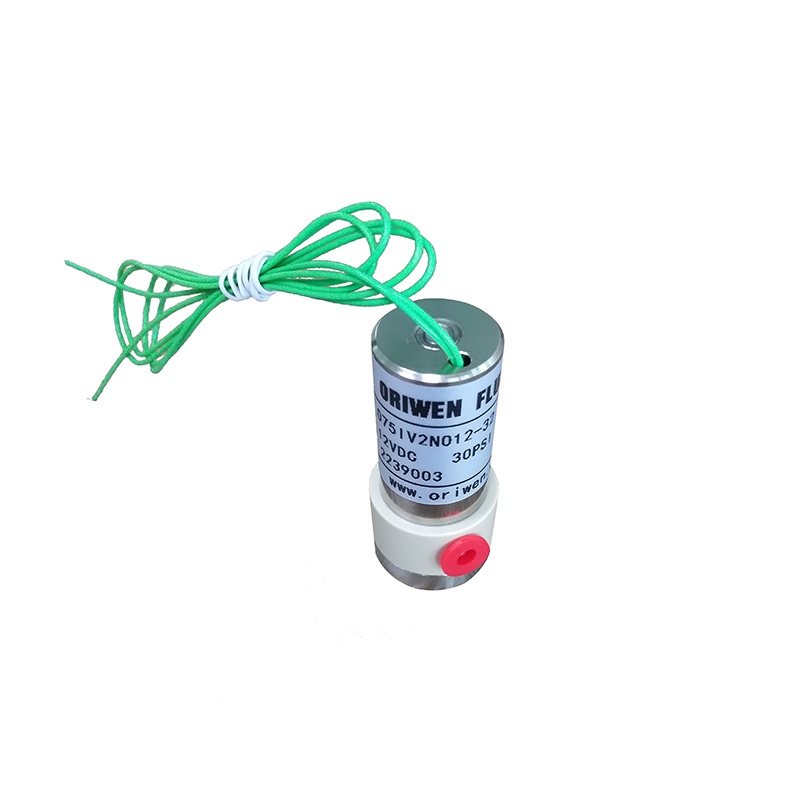

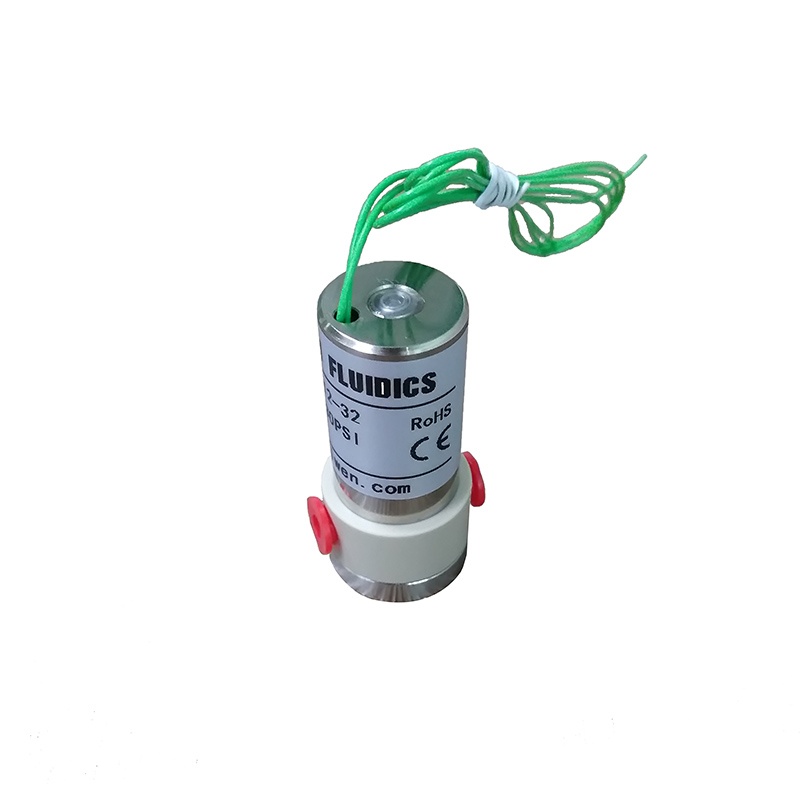

Micro Normally Open Solenoid Isolation Valve (075IV2NO12-32)

Micro Normally Open Solenoid Isolation Valve (075IV2NO12-32)

Oriwen Fluidics Custom Solenoid Isolation Valves (inert) are applicable to medical and analytical instruments. Small highly inertness valves are suitable for flow control on corrosive chemical liquids and particle-free liquids. Normally Closed, Normally Open and 3 Way NO/NC solenoid isolation valves are all available for different application areas.



Specifications

Method

Solenoid

Orifice (mm

0.8/1.6/3.0 mm

Body material

PEEK/PTFE/PVDF

Diaphragm

PTFE/FFKM

Type

2way NO/NC; 3way

Pressure resistance

30 psi/60 psi

Rated voltage

12 VDC/24VDC

Power consumption

4.0W/5.0W

Response time (Standard)

20 ms

Operating duration

Continuous

Energy - saving chip

Optional

Features

Both 2way-NC, 2way-NO and 3way available

Max pressure resistance 60PSI

Resistant to various strong corrosive media

Orifice 0.5~3.0mm optional

Low energy consumption

A shorter response time

Wetted materials: PTFE/FFKM, etc.

Zero dead volume, reducing cross-contamination

Modular installation: no leakage points and smaller installation space



Small Valve Types

Different sizes of isolation valves; Solenoid Coil Size: 19.1mm and 25.4mm;

Corresponding Orifice: 0.032’’~0.125’’ (0.81mm~3.17mm), suitable for a range of applications.



Wetted materials

Standard material: PTFE, inert and good performance of corrosion resistance; others.

Note:

*Mounting clip, ring, and flange are all available to support with.


Please feel free to contact us for quotation of this Solenoid Isolation Valve.
