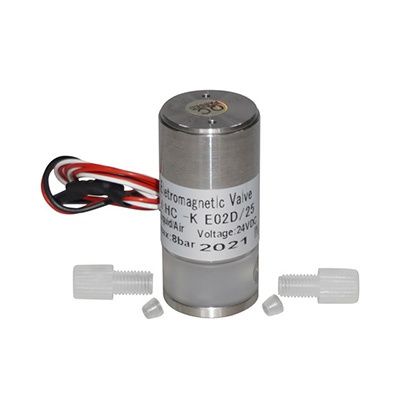

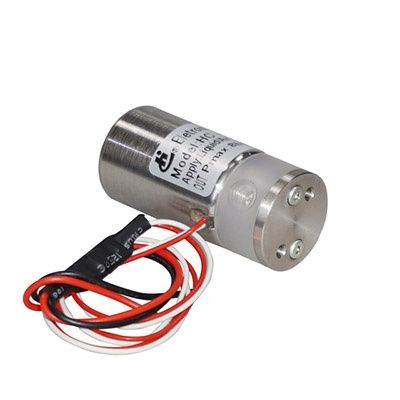

COD Digestion Instrument Strong Acid Alkali Resistant 2 Way NC Solenoid Diaphragm Valve
- Product No.:2021123117535
COD Digestion Instrument Strong Acid Alkali Resistant 2 Way NC Solenoid Diaphragm Valve
Our Solenoid Operated Isolation Valves provide a completely inert and non-metallic fluid path for instrument designers. A flexible diaphragm is used to isolate the solenoid actuation mechanism from the fluid path. The valves are well suitable in the environmental and water analysis, and highly aggressive/high purity fluid in analytical chemistry and clinical diagnostics area.
Features
1. Long service life, easy to install
2. Strong acid and alkali resistant, and high reliability
3. Low power consumption, low noise
4. Fast response
5. Small dead volume, no leakage
6. Maintenance free
7. Mini size
8. Oil-free lubrication
9. No leakage
10. High efficiency
Materials
Body: PCTFE
Seal: FFKM
Application
1. Medical Diagnostic Analysis Instruments
2. Emissions measurement
3. Printing
4. Portable devices (water quality or environmental monitoring equipment)…
Technical parameters
Model |
HC-K E02D/25 |
Drive method |
Solenoid |
Type |
2-way Normally Closed |
Orifice (mm) |
1.9mm |
Material of valve body |
PCTFE PFA |
Outlet pressure (Mpa) |
0.8 |
Interface |
1/4-28UNF |
Seal material |
FFKM |
Voltage |
DC 24V |
Power consumption (W) |
6 |
Response time |
< 30ms |
Leak rate |
0 |
Duty cycle |
Working continuously |
Fluid temperature |
0 ~ 180℃ |
Environment temperature |
0 ~ 60℃ |
Weight (kg) |
0.07kg |
Please feel free to contact us for more Solenoid Valves.
