Products >> Peristaltic Pump >> Micro peristaltic pump

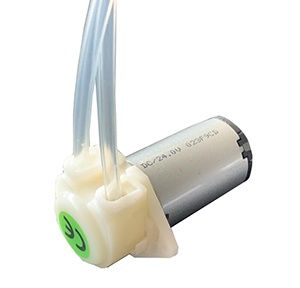

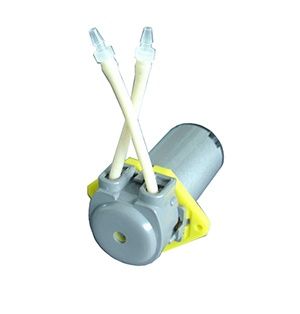

DC 12V 24V Mini Peristaltic Pump TT-10A
- Product No.:20201013163016
DC 12V 24V Mini Peristaltic Pump TT-10A
Micro Peristaltic Pump Application
Dental scaler, medical equipment
Dishwasher, sanitary ware industry
Additive measurement in food and beverage production
Water treatment additives
Suitable for medicine, scientific and biological research or packaging control
Introduction & Features
1. Compact design, saving space;
2. Simple structure, less parts used, generally with three rollers;
3. Short response time;
4. Easy and quick replacement of cover/housing;
5. Suitable for different hose/tubing materials and installation;
6. Outlet position: Both the left and right sides
7. Fine and safe for dry-run
8. Maintenance-free
9. Accelerated reduction of friction from motor shaft to roller
10. DC, AC and stepper motors are available
11. If not used or put aside for more than 3 months, the pump cover/housing and the motor shaft are advised to be stored separately.
Technical Specification
Material |
Engineering plastics |
Brand |
Oriwen Fluidics |
Model |
TT-10A |
Application e.g. |
Biochemical analyzer, hematology analyzer, environmental monitor |
Other names |
Small peristaltic pump, micro peristaltic pump |
Flow range |
~130ml/min |
Head (m) |
2m |
KPP |
Flow (ml/min) |
AC/DC low cost |
20-50 |
DC |
22-160 |
Stepper motor |
0-30 |
Motor |
DCB (Brushed and brushless DC motors) |
Voltage (V) |
12/24 |
Rated power (W) |
6/6 |

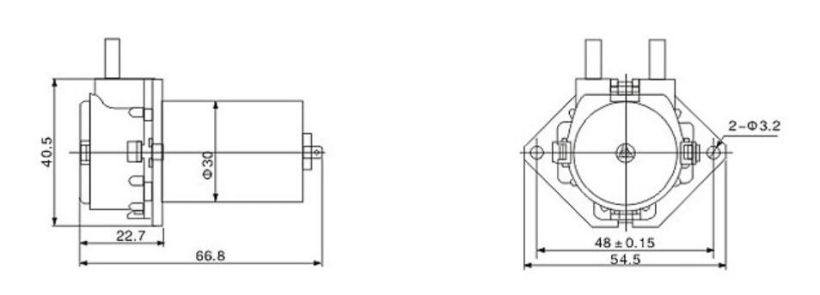

Dimensions
