TL-JL-500S Dosing Peristaltic Pump
- Product No.:202092917353

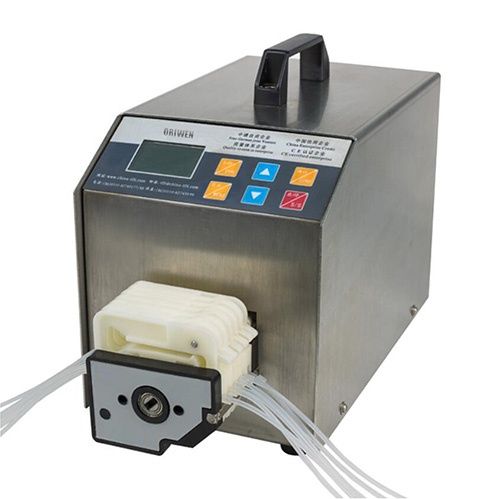

TL-JL-500S Dosing Peristaltic Pump
Product Description
1. Adopting hose directional air-stroke control technology, the accuracy of the input is ±0.01.
2. Stepping motor (Japanese original) 128 subdivision drive, accurate, high precision and stable operation.
3. Adapt to fluids of different specific gravity (density 240-312kg/m³)
4. Different parameters adapting to different liquid dosages. No need to change once setting.
5. One-key conversion between normal and dosing functions.
6. It has the function of filling peristaltic pump combining flow type and small flow high precision.
7. Unique fluid design SUS304 stainless steel metal plate one-time molding machine shell, the surface can be coated with Teflon, etc., which can be applied to certain acid and alkali occasions.
8. The pump casing is made of high-precision AL aluminum material at one time. The rotor is made of SS material.
9. The equipment has a memory function, and automatically saves the state parameters during operation when it is stopped or power off.
10. External receiving jog switch signal
Application
Laboratory dosing measurement
Colleges and Universities Laboratory
Medicine, biological science research
Biological culture fluid filtration
Water needle dispensing
Conventional fluid delivery
Technical Specification
Drive |
Pump head |
Hose/Tubing |
Flow range |
Weight |
TL-YY15-500S |
YZ-1515-6 |
16# |
0.04-600ml/ |
6.9kg (without pump head) |
Dose error |
≤±0.01 |
Rotation range |
0.1~500rpm forward and reverse (reversible) |
Dose resolution |
0.1ml |
Reference flow |
0.04~600ml/single time (0.1-8ml/s) |
Display |
LED |
Operation mode |
Manual/automatic/external control |
Control method |
Single-time/continuous |
Specific gravity |
0.00-3.99 adjustable |
Storage quantity |
6 |
Hose loss compensation |
±0.1-9.99ml |
Dose test |
Self-check |
Power supply |
AC220V±10%, 50/60Hz |
Working environment |
Ambient temperature -10~50℃, relative humidity <90% |
Dimensions (LxWxH mm) |
350x170x240 (Single pump head) 395x170x240 (Double pump head) |
