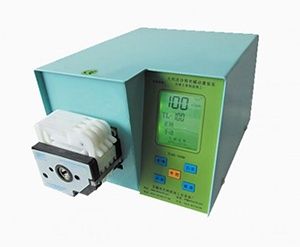

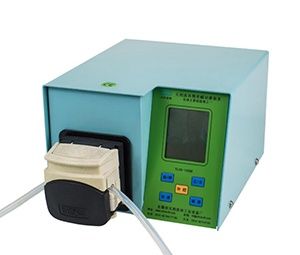

TL00-100M General Purpose Peristaltic Pump
- Product No.:2020923181819
TL00-100M General Purpose Peristaltic Pump
Application
Additive measurement in food and beverage production, acid and alkali supplementation and defoaming in beer fermentation system, suitable for medicine, biological science research or packaging control...
System Composition and Flow Range
Drive |
Pump head |
Hose/Tubing |
Reference Flow (ml/min) |
Weight (kg) |
TL00-100M |
YZ1515 |
13# 14# 16# 19# 17# 18# 25#
(Wall thickness 1.6mm) |
0.05~380ml/min |
6.70 |
YZ2515 |
13# 14# 16# 19# 17# 18# 25# (Wall thickness 1.6mm) |
0.05~470ml/min |
6.70 |
|
YS1515 |
15# 24# 35# (Wall thickness 2.4mm) |
0.05~290ml/min |
6.50 |
|
313D 316D |
13# 16# 19# 17# 18# 25# (Wall thickness1.6mm) |
0.05~350ml/min |
6.50 |
|
DG4 DG8 |
1.0×1.0, 2.0×1.0, 2.5×1.0 |
Single-tube 0.02~27ml/min |
6.50-7.20 |
|
YY1515 |
13# 16# 19# 17# 18# 25# (Wall thickness1.6mm) |
Single-tube 0.06~410ml/min |
6.90 |
The above reference flow uses 25°water as the medium, and the data is measured under the same water pressure.
PC: Polycarbonate PPS: Polyphenylene sulfide PSF: Polysulfone
SS: Stainless steel ABS: Engineering plastic material
Technical Specification
Speed resolution:1.0rpm
Speed range: 1.0 ~ 100rpm forward and reverse (reversible)
Adjustment method: easy to clean, membrane button, continuously, simple and intuitive
Display: LCD digital high-definition screen, displaying all the working status
External control interface: start-stop, forward-reversible, speed (0~5V, 0~10V, 4~20mA)
Power supply:AC220V±10%, 50Hz/60Hz
Applicable pump head:YZ1515, YZ2515, YS1515, 313D, DG2-16, YY1515
Stepper motor: (Made in Japan) 64 subdivision drive, smooth, accurate, high precision
Power consumption: ≤85W
Pump housing materials: PPS, PC, PSF, ABS, rotor material: SS
Memory function: it automatically saves the state parameters during operation after shutdown or power failure. The control card installed at the back of the chassis can accept 4-20mA or 0-10V analog automatic control signals to realize remote control direction conversion and on/off; speed can be manually adjusted, or can also be carried out through the external control interface for automatic control or foot control; and can be accurately canned.
Working environment: ambient temperature -10~50℃, relative humidity <80%
Dimensions: length x width x height 250x215x160 (mm) (without pump head)
Tubings data required
Materials, ID (inch/mm) OD (inch/mm) and Wall thickness (inch/mm), etc.
Other Models Recommendation
TL00-200M (0.05~520ml/min)
TL00-300M (0.05 1250ml/min)
TL00-600M (0.05-2300ml/min)
TL00-700M (10-13000ml/min)
