ORI5002PM Brushed Motor Micro Vacuum Pump

ORI5002PM Brushed Motor Micro Vacuum Pump

Product No.：202535153237
Price：USD10.00
Online Inquiry

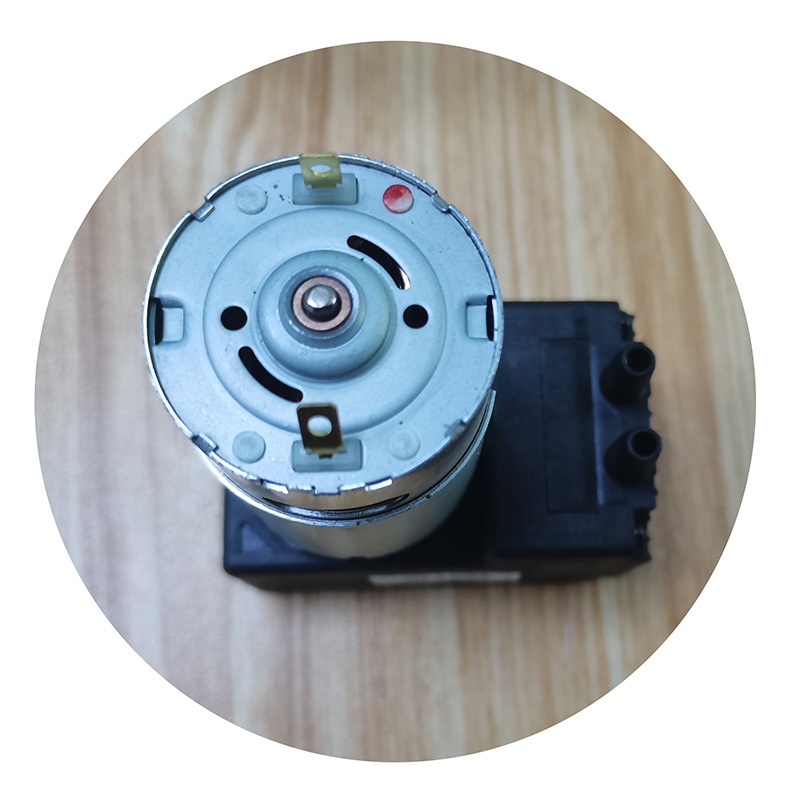

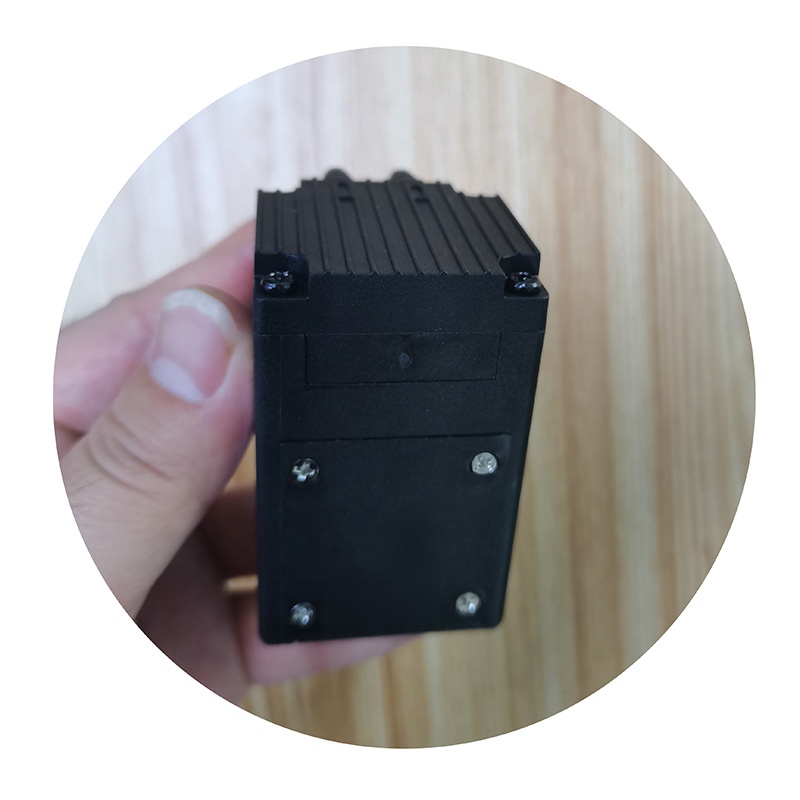

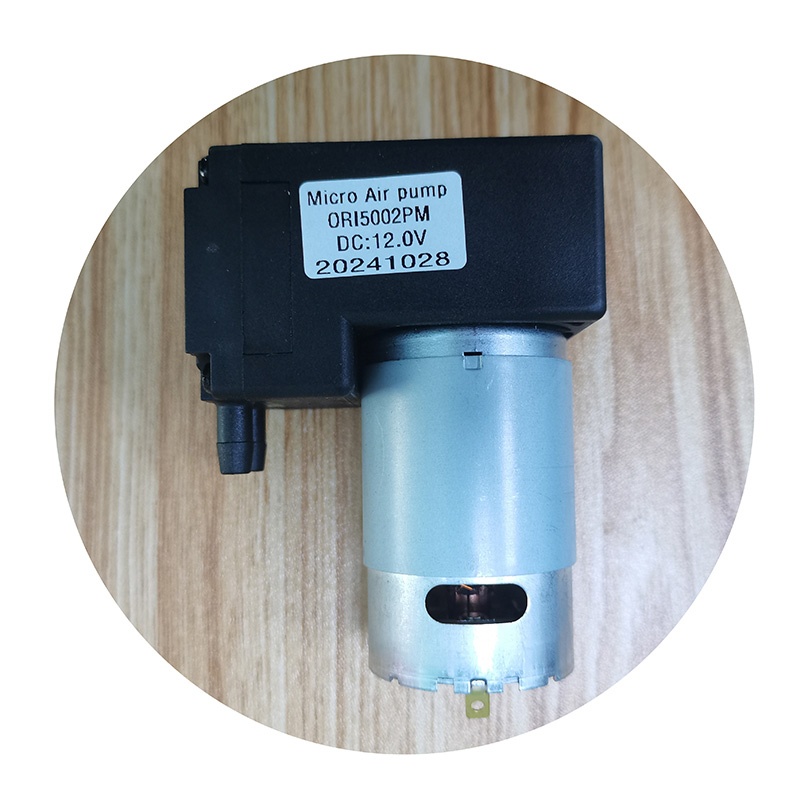

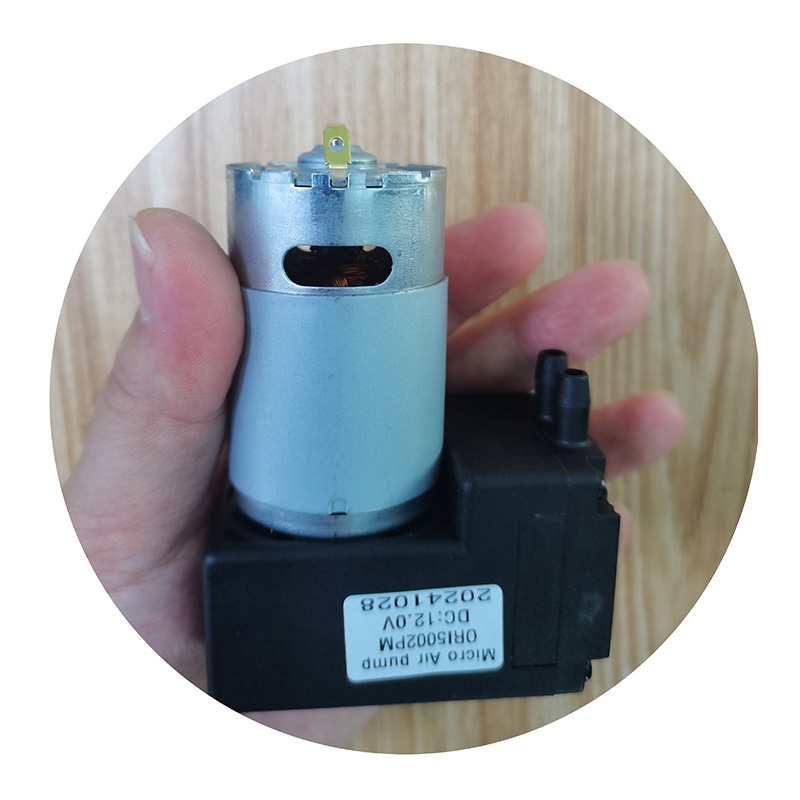

ORI5002PM Brushed Motor Micro Vacuum Pump

Oriwen Fluidics specialized in manufacturing solenoid pinch valves or isolation valves and micro pumps which are applicable to medical and analytical instruments. Now launched is a micro vacuum pump ORI5002PM. OEM service is also provided.

Applications

Medical equipment, leg beauty machines, car seat cushions, foot massagers, vacuum electronic instruments, beauty instruments.
Blood pressure monitors, memory pillows, ventilators, oxygen concentrators, and other inflatable, pressurized and vacuum products.

SPECIFICATION

SPECIFICATION
Rated voltage	DC6V	DC12.0V	DC24V
Rated current	<2000mA	<1200mA	<700mA
Air flow	10-20L/min
Positive pressure	>200kpa
Negative pressure	<-600mmhg (80kpa)
Noise	65dB
Leakage	When inflated to 300mmHg in 500CC, the leakage is less than 10mmHg/min
Apply for	Air
Life test	50.000 Times(ON 10S,OFF 5S as one cycle)
Environment	0-50℃RH75％
Power	12W

Please contact us further to check the dimension drawings.

Notes:
*Other parameters: according to customer demand for design. OEM service is available upon your request.
*Brushless motor micro pumps are also available.
