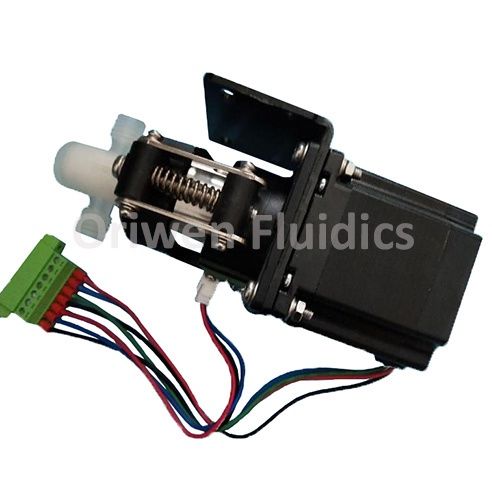

Micro Ceramic Plunger Pump

1. Performance characteristics:

(1). Rated pressure: ≤0.2MPa

(2). Repeatability: ≤0.5%

(3). Medium: general liquid, oil, water and other liquids that do not crystallize and solidify

(4). Drive: 2-phase stepping motor, step angle 1.8°

(5). Phase resistance: 0.5Ω, phase current 2A

(6). Rated working speed: 0~500 rpm

(7). Voltage: DC24V;   Input power: 50W

(8). Fluid temperature≤100℃

2. Specifications (selection table)

Plunger diameter (mm)	Model	Specification (μL/rev)	Flow range (mL/min)	Remarks: (pls remark when ordering, if you do not remark the default external thread)
6	SQ1-57SFPP6-100ul/r-O6mm	50, 80, 100	0－50	1. The outer thread of the ferrule: the outer diameter of the tube is any specification between φ4~6mm 2. Internal thread of ferrule: 1/4-28 (3.175mm)
8	SQ1-57SFPP8-200ul/r-O6mm	120, 150, 200	0－150

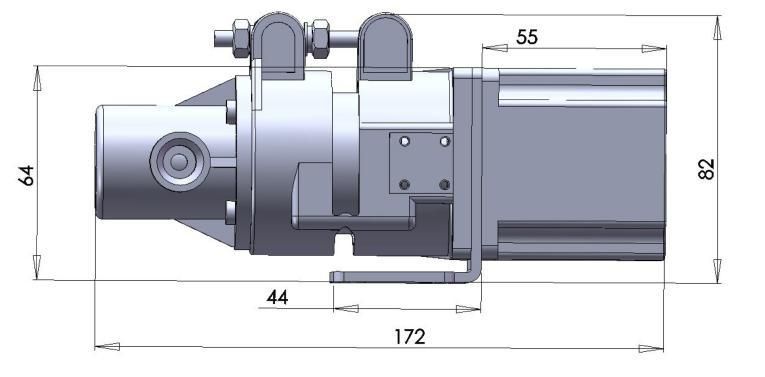

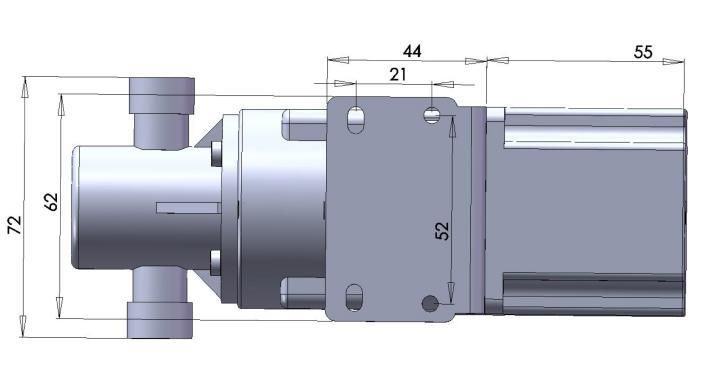

3. Installation dimensions



Welcmome to check with us for more models.
