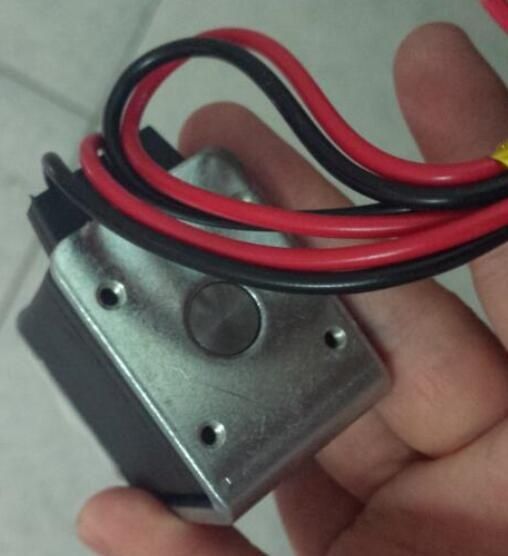

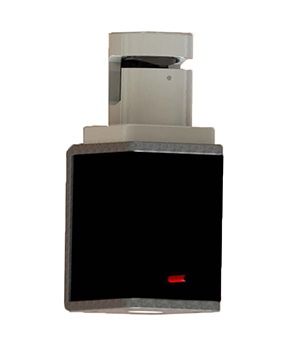

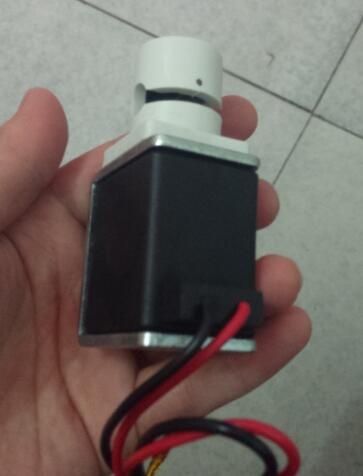

WK-01 12V DC Normally Closed NC Pinch Valve



Solenoid Pinch Valves (WK-01 series)


Principle

Solenoid pinch valve (referred to as pinch valve) is driven by solenoid coil, controlling the opening and closing through squeezing or releasing the flexible tubing. Only the easily replaceable tubing contacts with the fluid. This means that this pinch valve is ideal for those applications requiring frequent changes of the flow path. Compared with other types of solenoid valves, pinch valves are more economic and have no cross-contamination.


Application

This series pinch valves are widely applied to Chemical industry, Medical industry and Environmental industry, for example in the areas of water, urine, biochemistry and blood analysis and waste emissions.



Features & Advantages of WK Series

1. Allowable voltage range (wider) ±7%;
2. Higher pressure bearing capacity (suitable for most fluid areas);
3. Valve position-limit device (no broken or stuck tubing after long time using);
4. Special matching tubing, ensuring best resilience and service life;
5. Stable and reliable performance;
6. Long service life (valve: >1 000 000 times);
7. Precision stroke and effective seal force to protect tubings and valves;
8. Good temperature resistance to temperature and chemical corrosion: valve body (PBT/PC alloy), valve stem (stainless steel);
9. Teflon coating on the wire surface.



About Tubing

To ensure stable and durable performance, insert the tubing into the grooves when in use.

Silicone tube (smooth inner wall and great memory).
Biochemical tubing (acid and alkaline solvents resistant).


Operating Voltage and Pressure


Model (WK series)
Rated Voltage
Max Pressure
2way-NC: 04/01/06/08/10
24±3%
200kpa
12±2%
200kpa
2way-NO: 03/05/07/09/11
24±3%
200kpa
12±2%
200kpa
3way: 02/12
24±3%
100kpa
12±2%
100kpa

We accept customization of products to suit your requirements.

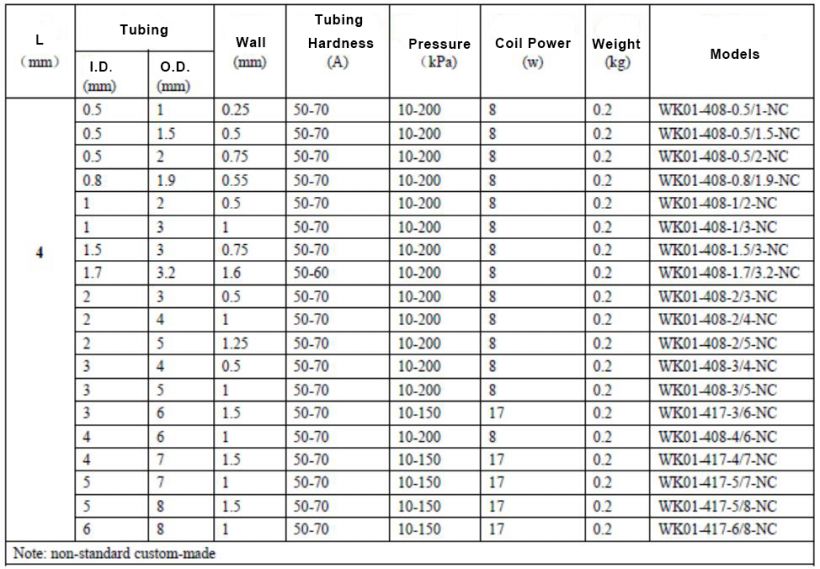

Specification (WK-01 series)

wk01 pinch valve
